[Twiz O'meter/BigToM/ToM+] Update to firmware 2.4

Dang, you are fast!!
Thank you!

Snorre schrieb: Um die DTC Fehlerliste anzuzeigen musst du das Icon mit dem X antippen (siehe letztes Bild im verlinkten Post).
Wenn dieses Icon bei dir (noch) nicht angezeigt wird, dann muss du mehrere Sekunden auf das derzeit an dieser Stelle angezeigte Icon tippen, bis es wechselt.
Im worst case musst du das 2-mal machen.
Es gibt nämlich 3 Listen zur Auswahl:
- Trip History
- "Ereignisliste" (eine treffendere Bezeichnung fällt mir im Moment gerade nicht ein)
- DTC Fehlerliste

Das hat bestens funktioniert! Ich wäre nie auf die Idee gekommen, dass ich durch langes drücken auf ein Bedienelement dessen Funktion umstellen kann - nice!

kengelbr schrieb: Ich wäre nie auf die Idee gekommen,

Just an anticipation, I'm working on a completly new instruction manual.
I hope to have it ready within the end of this summer.

kengelbr schrieb: Das hat bestens funktioniert!

Remember that if you want to read the error description, you have to enable this feature entering in the "password 4" field the string GIVE_ME_DF! (exactly like wrote here, also with underscore and !) and press OK.
Then you'll see the description by tapping on the error entry in the error list.

Please let me know if you need someone to review it (EN or DE)! I'm a RE/BA in my company, and my colleagues say they're never disappointed

Don't tell me twice...

I've been off the radar for a while, just driving around in my Twizy

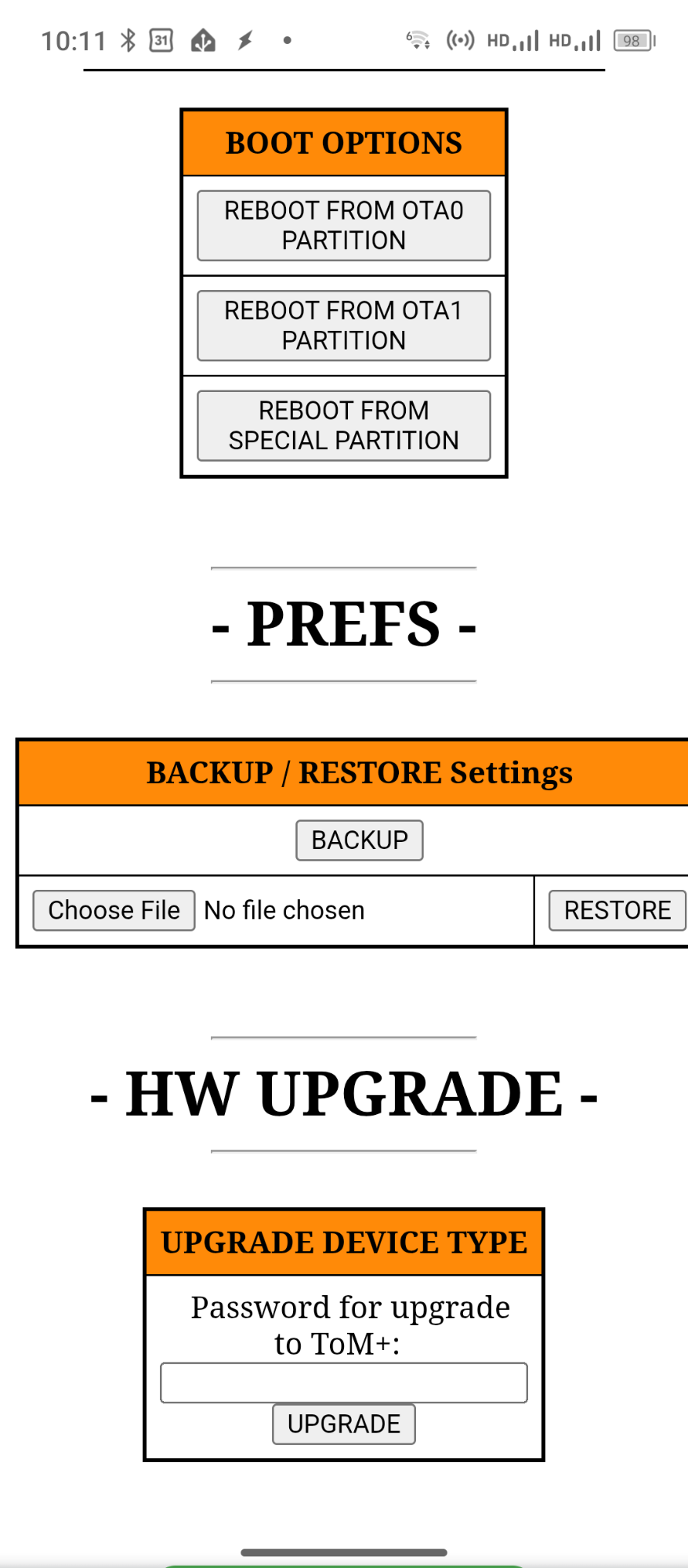

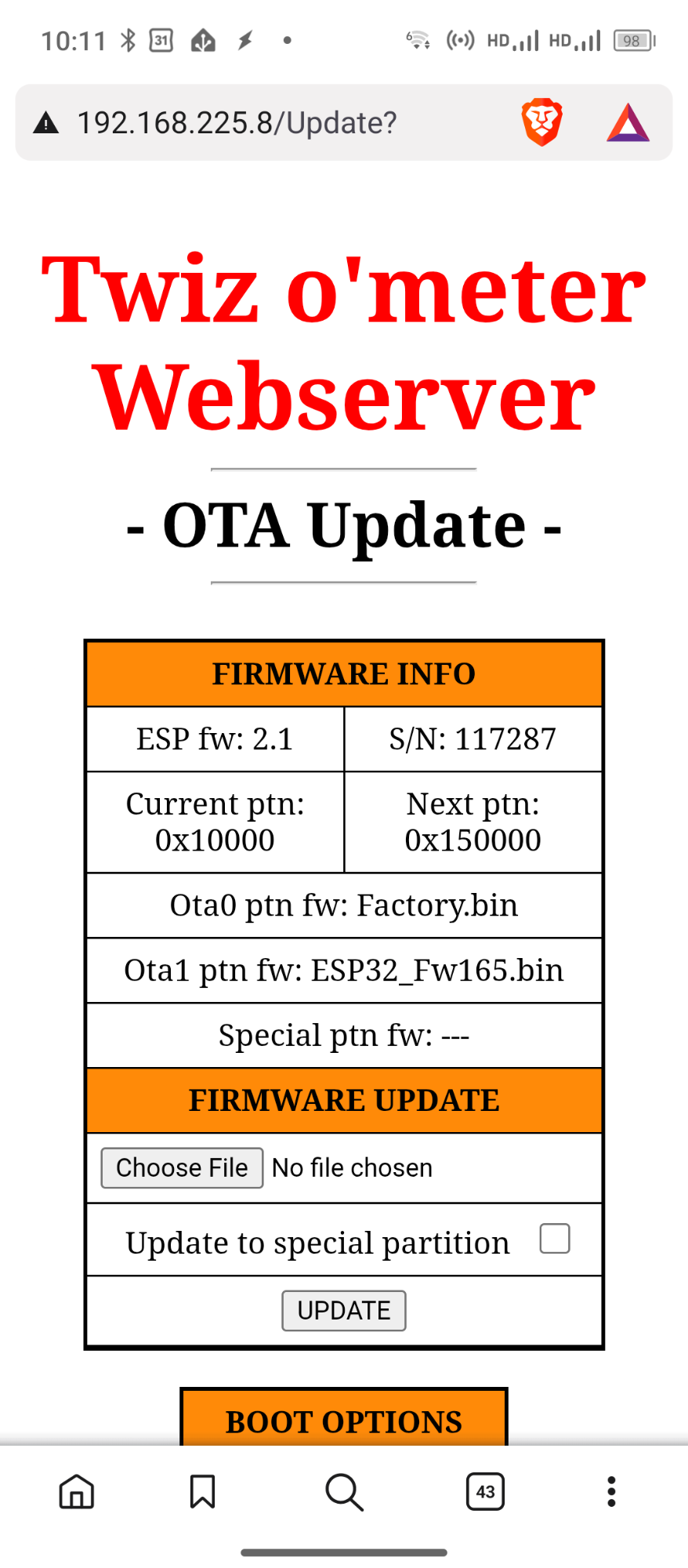

Now I'd like to upgrade, but I'm scared. I read that it is extremely important to update the big display first, but I don't understand how to do that. I don't see an option to update the display in the OTA update page, or anywhere else?





I don't want to brick my ToM. I also read that after the display upgrade, the display might not turn on. What do I do then when I can't open the web interface? Sometimes, when the ToM connects to my phone's hotspot, it picks another IP address, and when I can't look it up on the display, I don't know how to update the box.

At the moment you´re still running firmware 2.1.
This is too old to update the display OTA.
Either you use an sd card for updating the touchscreen directly to firmware 2.4, or you have to update first the blackbox to firmware 2.3, then the touchscreen OTA to firmware 2.4 and last the blackbox to firmware 2.4 too.

Don´t be afraid.
It´s nearly impossible to brick the hardware.
I never heard that anyone managed to brick ToM hardware by firmware update.

I went with the 2.3 -> 2.4 route.

The upgrade of the box to 2.3 went fine.

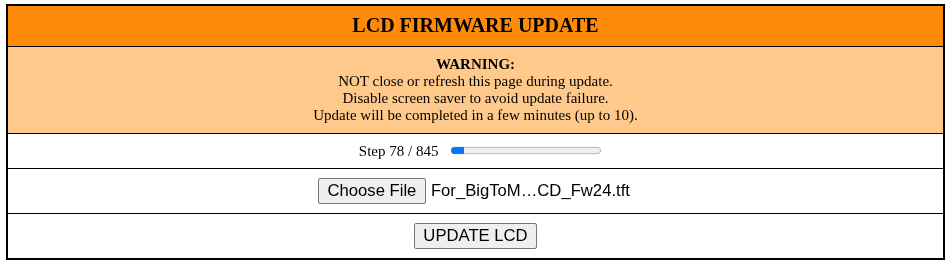

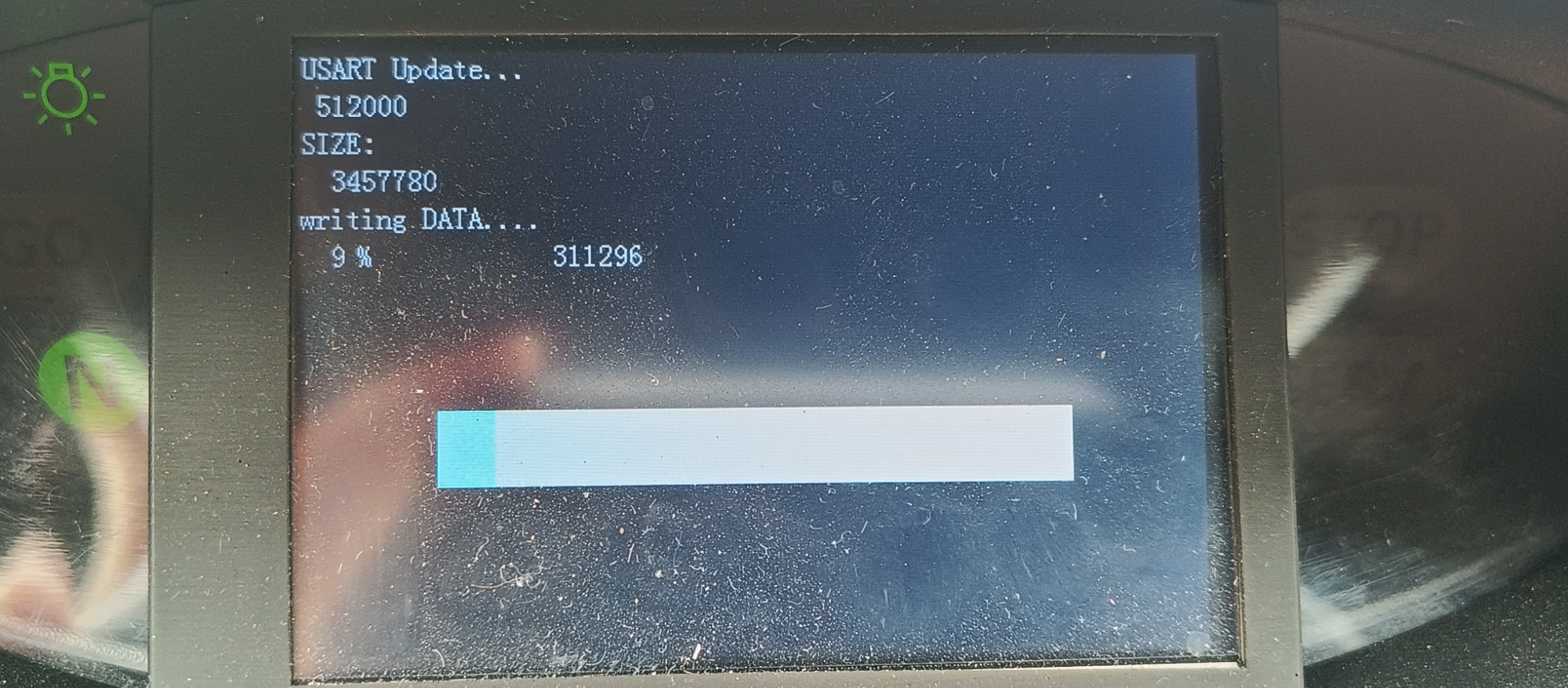

However, I started the 2.4 update of the LCD 12 minutes ago (I've used a stopwatch). I've kept the browser window open, as it instructs, but it's been sitting like this, unchanged, for a long time:





What should I do?

Reboot and restart with the lcd fw update.
Don't take care about the errors messages you'll ready on the screen.
Stay at a place where your wifi connection is good, or use your phone.

Phew! Second attempt worked. Both LCD and box now at 2.4

I come from the era where flashing a PC motherboard's BIOS sometimes went wrong, bricking the board. I still carry the emotional scars from that time

Thanks for the help, love the new functionalities!

-edit-

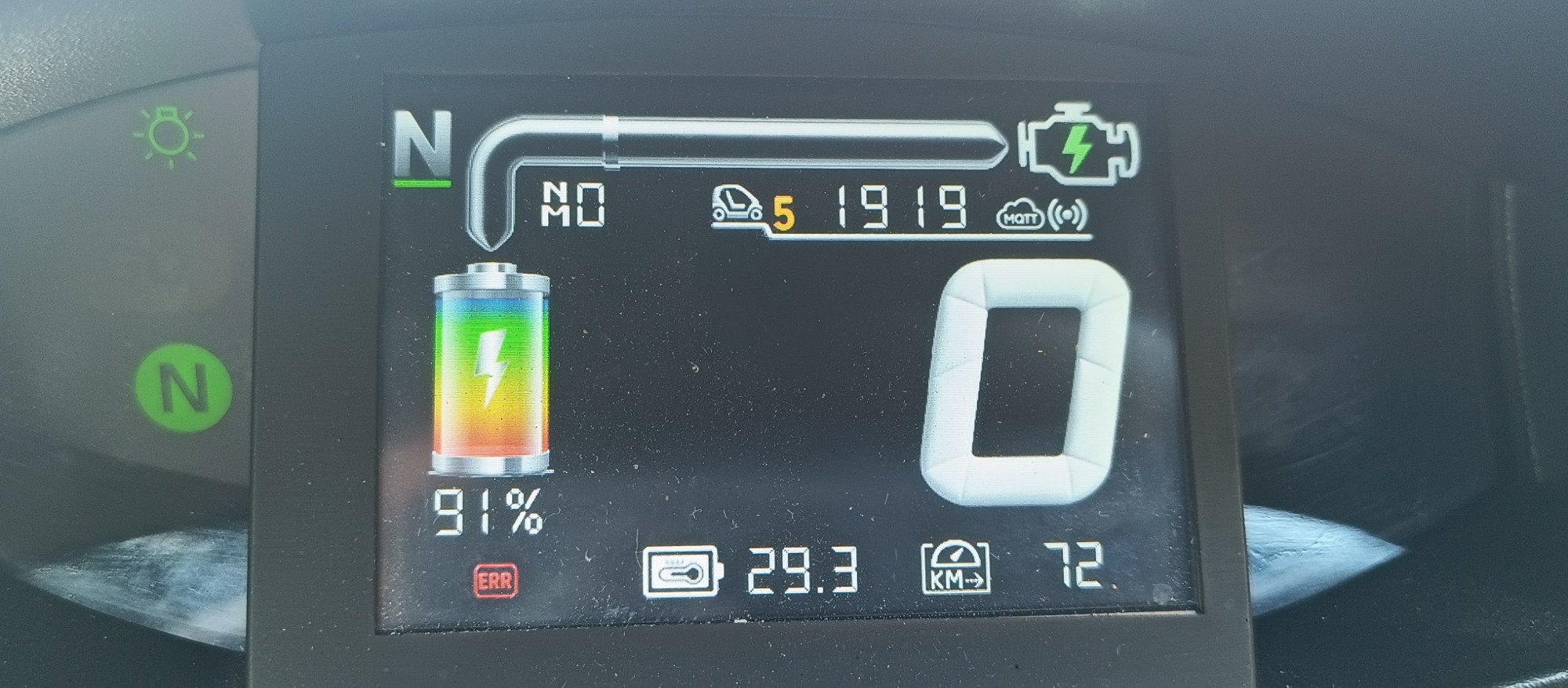

Interestingly, due to the ERR indication, I saw that there were stored errors:



I tried googling these codes, but can't find the meaning of them. Does anyone know if there is a list explaining them?

Snorre schrieb: Don´t be afraid.
It´s nearly impossible to brick the hardware.
I never heard that anyone managed to brick ToM hardware by firmware update.

I had the 1-37 as well from the moment I connected the new ToM+, searched the Interweb for it, first the Forum here, but never really found an answer. After deleting it (I learned to cicle between the info-trip-error-icons) it never reappeared.
And I got fooled by an error caused by the charging-flap being open

PriusTwizy schrieb: I tried googling these codes, but can't find the meaning of them. Does anyone know if there is a list explaining them?

Look at my recently posts and enable DF for reading the description.
