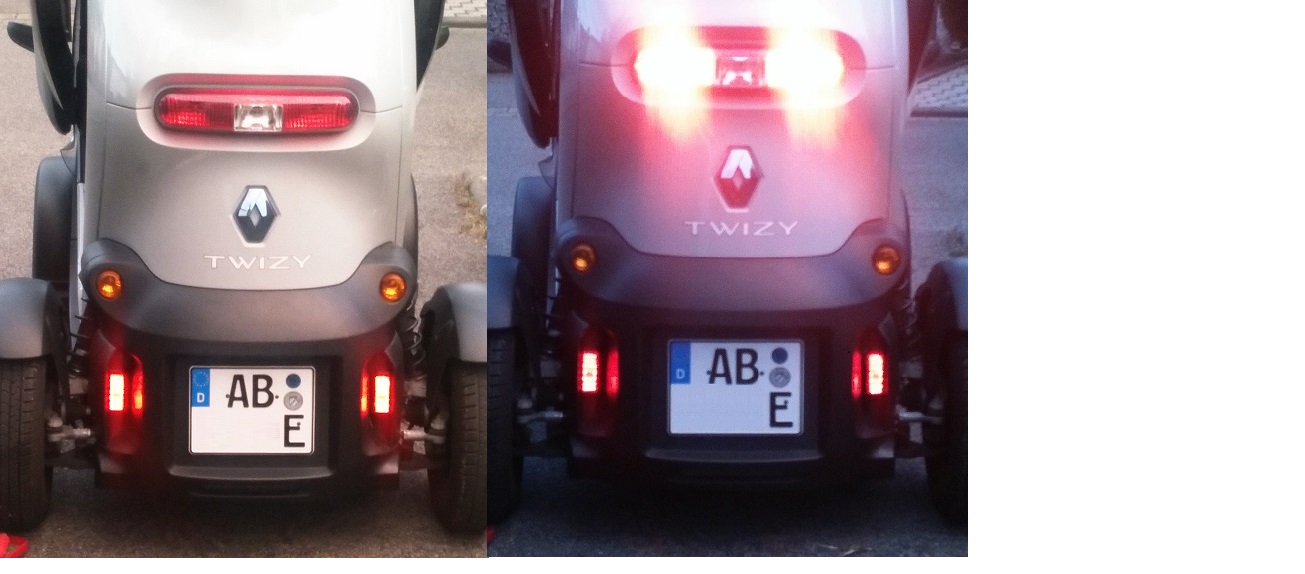

Reku-Bremslicht-Hack

<!--
  Test/Development/Documentation page; install as plugin to test
-->

<style>
.indicator > .label {
  font-size: 150%;
  line-height: 200%;
  margin: 10px;
  padding: 10px;
  display: block;
  border-radius: 50px;
}
.metric.number .label {
  min-width: 8em;
}
.metric.number {
  display: block;
  float: none;
  text-align: center;
}
</style>

<div class="panel panel-primary">

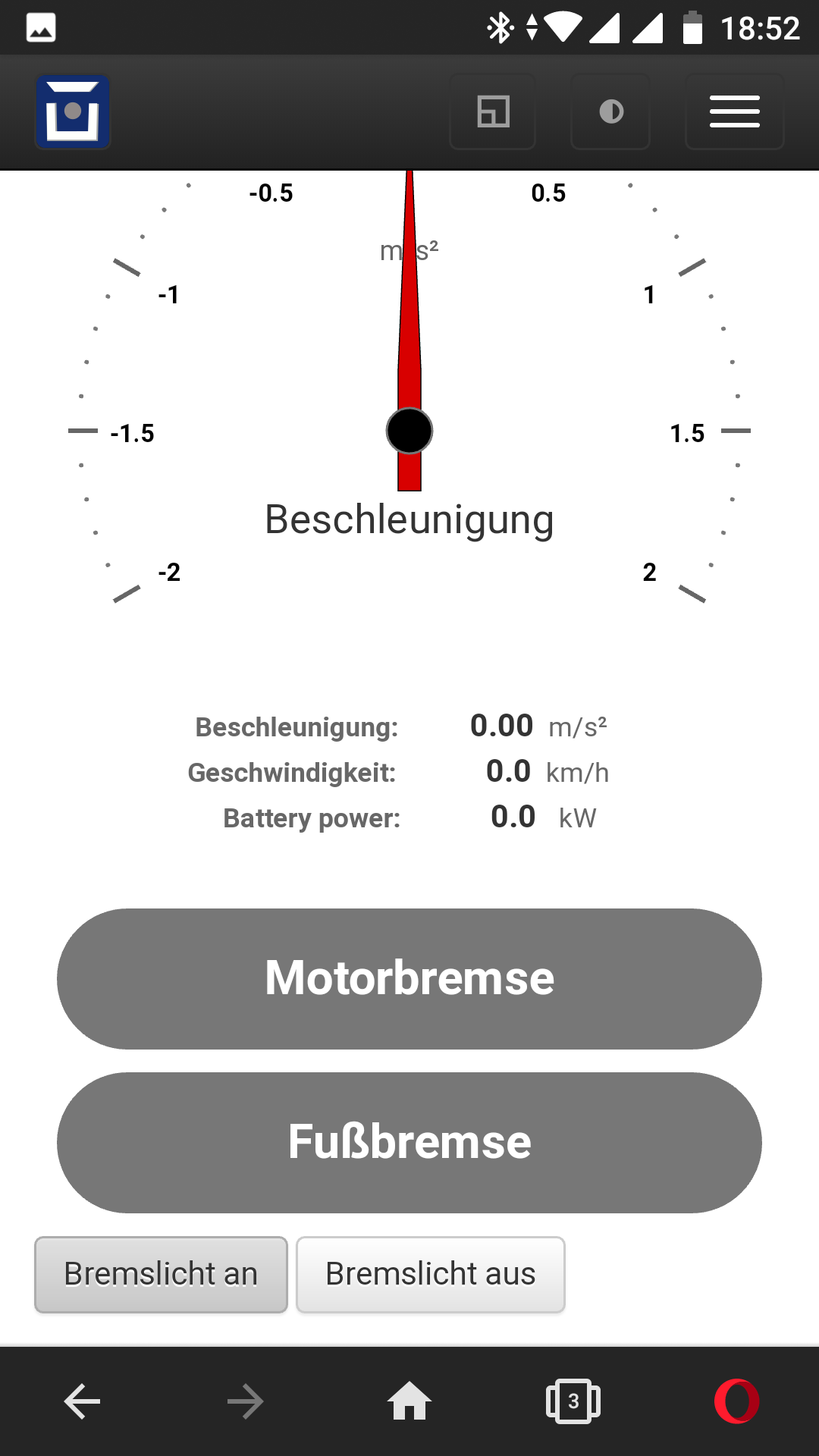

  <div class="panel-heading">Regen Brake Monitor</div>
  <div class="panel-body">

    <div class="receiver" id="regenmon-receiver">

      <div class="row">
        <div class="col-sm-6">
          <div class="metric chart" data-metric="v.p.acceleration" style="height:300px">
            <div class="chart-box gaugechart" id="accel-gauge"/>
          </div>
          <div class="metric number" data-metric="v.p.acceleration" data-prec="2">
            <span class="label">Beschleunigung:</span>
            <span class="value">?</span>
            <span class="unit">m/s²</span>
          </div>
          <div class="metric number" data-metric="v.p.speed" data-prec="1">
            <span class="label">Geschwindigkeit:</span>
            <span class="value">?</span>
            <span class="unit">km/h</span>
          </div>
          <div class="metric number" data-metric="v.b.power" data-prec="1">
            <span class="label">Battery power:</span>
            <span class="value">?</span>
            <span class="unit">kW</span>
          </div>
          <br class="clearfix"/>
        </div>
        <div class="col-sm-6">
          <div class="indicator" data-metric="v.e.regenbrake">
            <span class="label label-default">Motorbremse</span>
          </div>
          <div class="indicator" data-metric="v.e.footbrake">
            <span class="label label-default">Fußbremse</span>
          </div>
            <div class="row">
            <div class="col-sm-6">
            <button type="button" class="btn btn-default"  <a class="btn btn-default" href="#" data-cmd="egpio output 1 1">Bremslicht an</a> </button>
            <button type="button" class="btn btn-default"  <a class="btn btn-default" href="#" data-cmd="egpio output 1 0">Bremslicht aus</a> </button>
            <samp id="out1" />
         </div>
        </div>
      </div>

    </div>

  </div>
</div>

<script>
(function(){

  /* Init acceleration gauge: */
  $("#accel-gauge").chart({
    chart: {
      type: 'gauge',
      spacing: [0, 0, 0, 0],
      margin: [0, 0, 0, 0],
      animation: { duration: 250, easing: 'easeOutExpo' },
    },
    title: { text: "Beschleunigung", verticalAlign: "middle", y: 75 },
    credits: { enabled: false },
    tooltip: { enabled: false },
    plotOptions: {
      gauge: { dataLabels: { enabled: false }, overshoot: 5 }
    },
    pane: [{
      startAngle: -120, endAngle: 120, size: '100%', center: ['50%', '60%']
    }],
    yAxis: [{
      title: { text: 'm/s²' },
      className: 'accel',
      reversed: false,
      min: -2, max: 2,
      minorTickInterval: 0.1, minorTickLength: 5, minorTickPosition: 'inside',
      tickInterval: 0.5, tickPosition: 'inside', tickLength: 13,
      labels: { step: 1, distance: -28, x: 0, y: 5, zIndex: 2 },
    }],
    series: [{
      name: 'Acceleration', data: [0],
      className: 'accel',
      animation: { duration: 0 },
      pivot: { radius: '10' },
      dial: { radius: '88%', topWidth: 1, baseLength: '20%', baseWidth: 10, rearLength: '20%' },
    }],
    /* Update method: */
    onUpdate: function(update) {
      // Create gauge data set from metric:
      var data = [ metrics["v.p.acceleration"] ];
      // Update chart:
      this.series[0].setData(data);
    },
  });

  /* Init indicators: */
  $('#regenmon-receiver').on('msg:metrics', function(e, update) {
    $(this).find('.indicator').each(function() {
      var $el = $(this), metric = $el.data("metric"), val = update[metric];
      if (val == null)
        return;
      else if (val != 0)
        $el.children().removeClass('label-default').addClass('label-danger');
      else if (val == 0)
        $el.children().removeClass('label-danger').addClass('label-default');
    });
  });

})();
</script>
