[Twiz O´Meter] Instructions for ToM+ upgrade

Since the first ToM+ "upgrade kits" are being delivered, I leave here some basic instructions about how to complete the hardaware conversion.
1) First of all, turn off your ToM with the switch present on the OBD connector (position 0).
2) Unplug the USB connector of the original ToM display and plug the new ToM+ one (it is equipped with the same USB male connector)
3) Turn on the ToM OBD switch (position 1) and then turn on your Twizy, waiting ToM to boot
4) Update your ToM with the firmware inside the .zip archive attached at this post. You can update OTA or via USB, following the instructions you find in the forum.
5) Once your ToM will complete the reboot with the new firmware, go to the webUI, "OTA Update & Prefs"

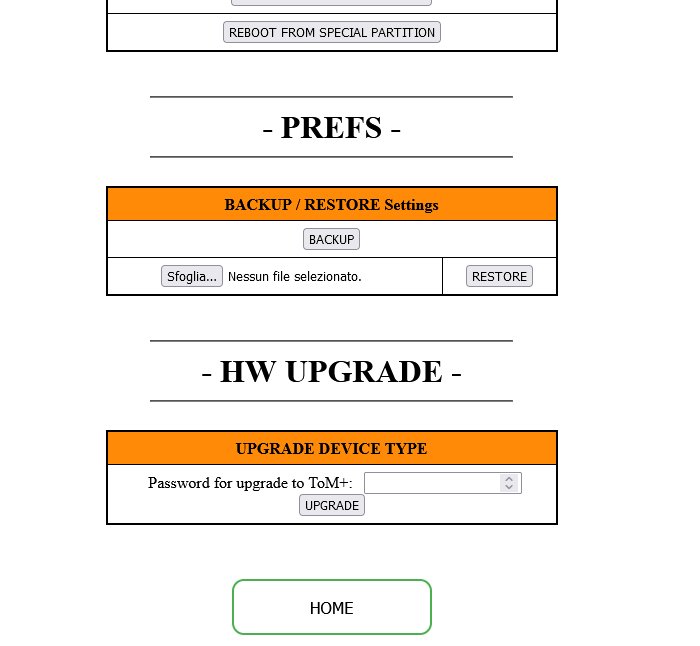

6) Here, you'll find a new section called "HW UPGRADE"

7) In the "Password for upgrade to ToM+" field, you have to enter the password written in the cover of the cartoon box where the "upgrade kit" is cointained and press the UPGRADE button
8) Turn off your Twizy
That's all! Now you have a ToM+
Next time you'll turn on again your Twizy, ToM+ will be working, presenting you the speedometer page as first page.
If you want, you can connect the external control button to the expasion port. It will work without need to set anything.

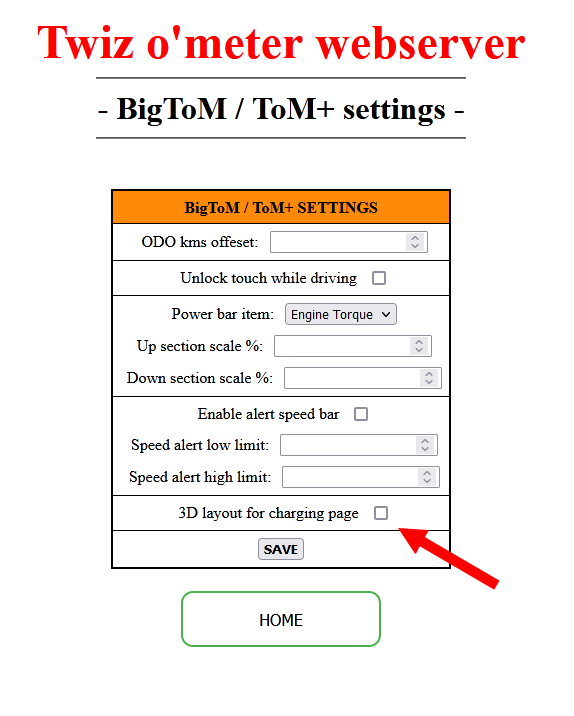

And, if you prefer to have the new 3D layout also for the charging page, enable it in the BigToM/ToM+ page of the webUI and press SAVE

Delvecchio schrieb: If you want, you can connect the external control button to the expasion port. It will work without need to set anything.

Sorry, this isn't correct. You have to set pin2 of the expansion port to act as CTRL button (webUI, Expansion port tab).
