18 Sep 2026 10:16 #285281 von CallMeLegend
My Take on the 13kWh Battery Using i-Pace Modules
OK, thought I'd document my take on the 13kWh battery, inspired by @Jack-Lee, thanks for the inspiration.

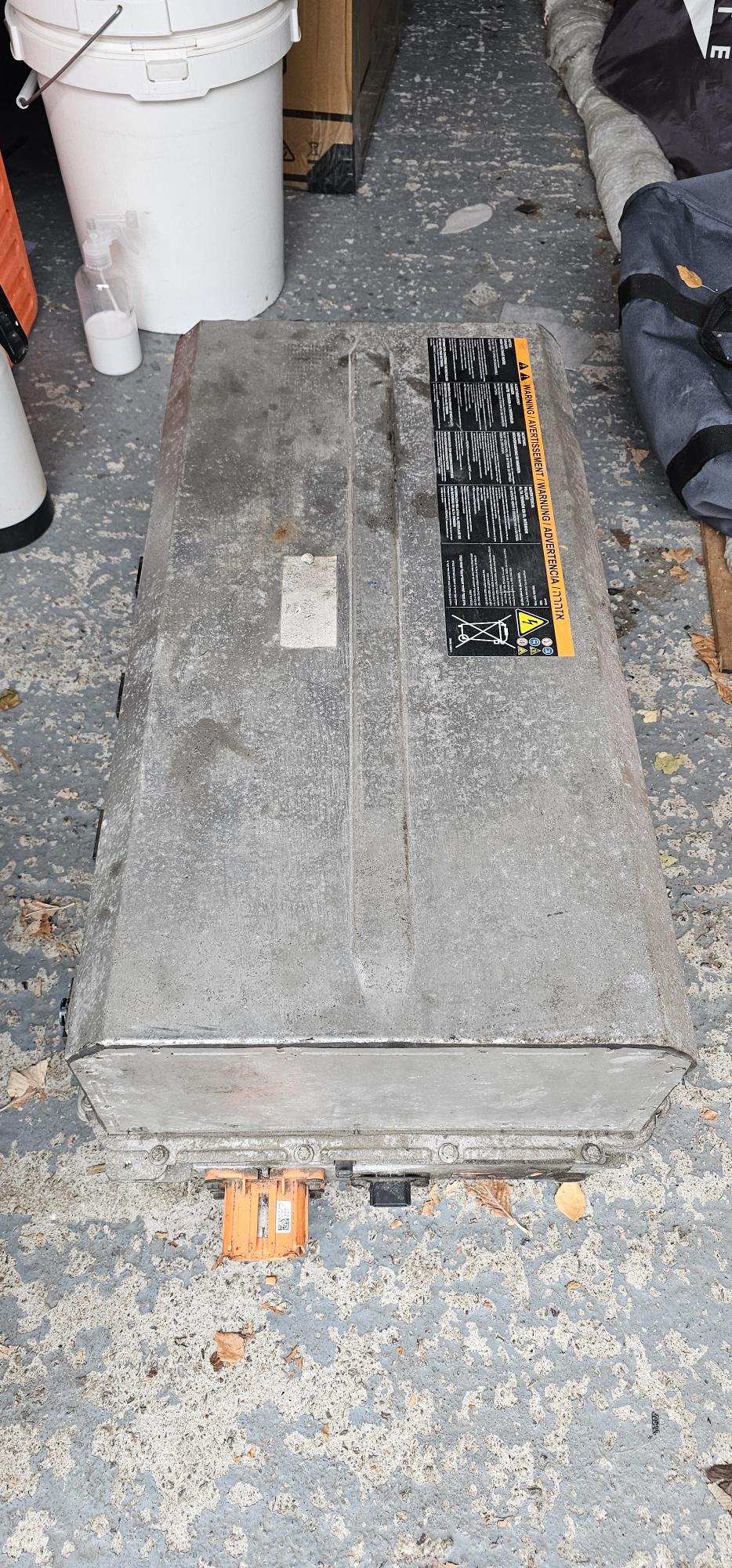

I managed to source a used battery pack super cheap.

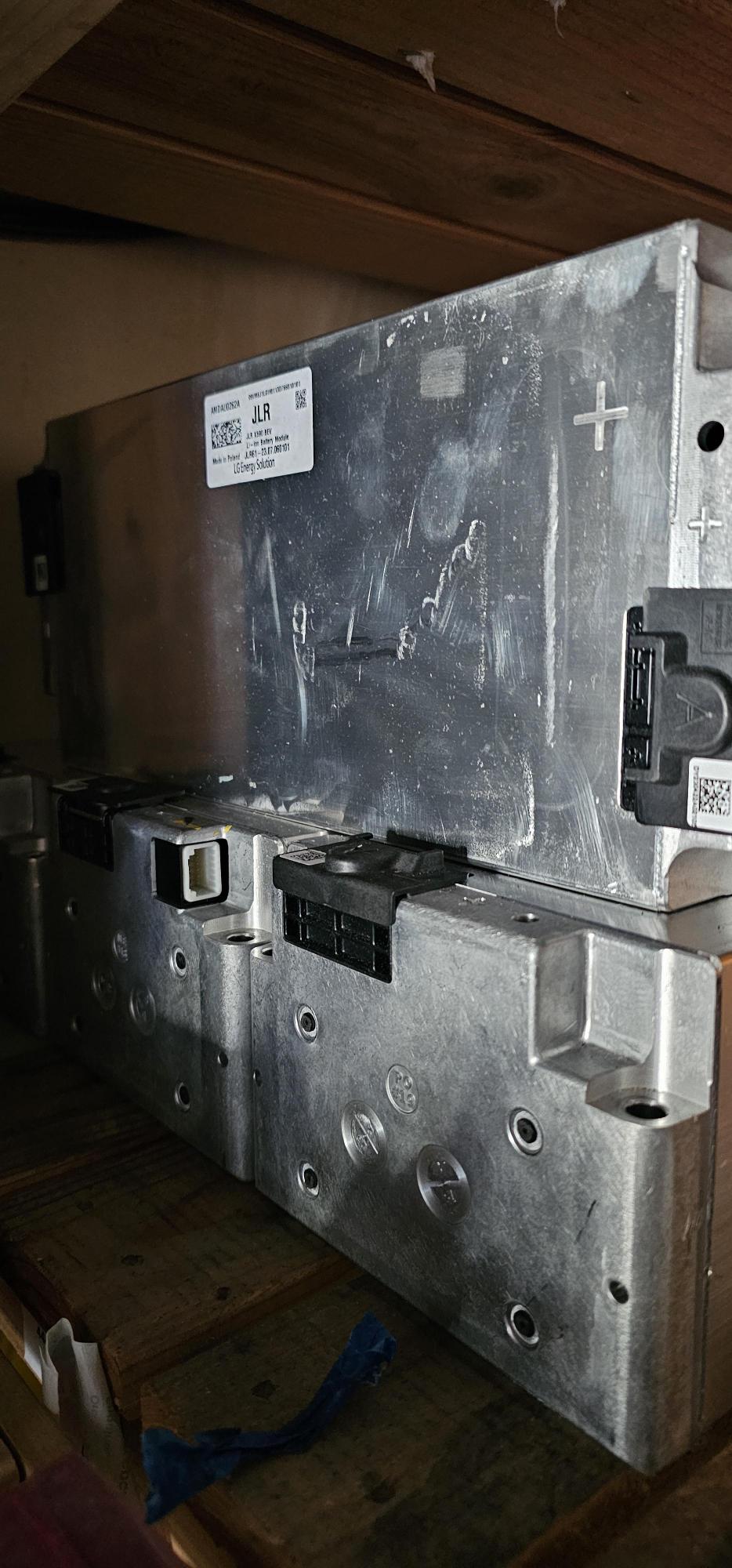

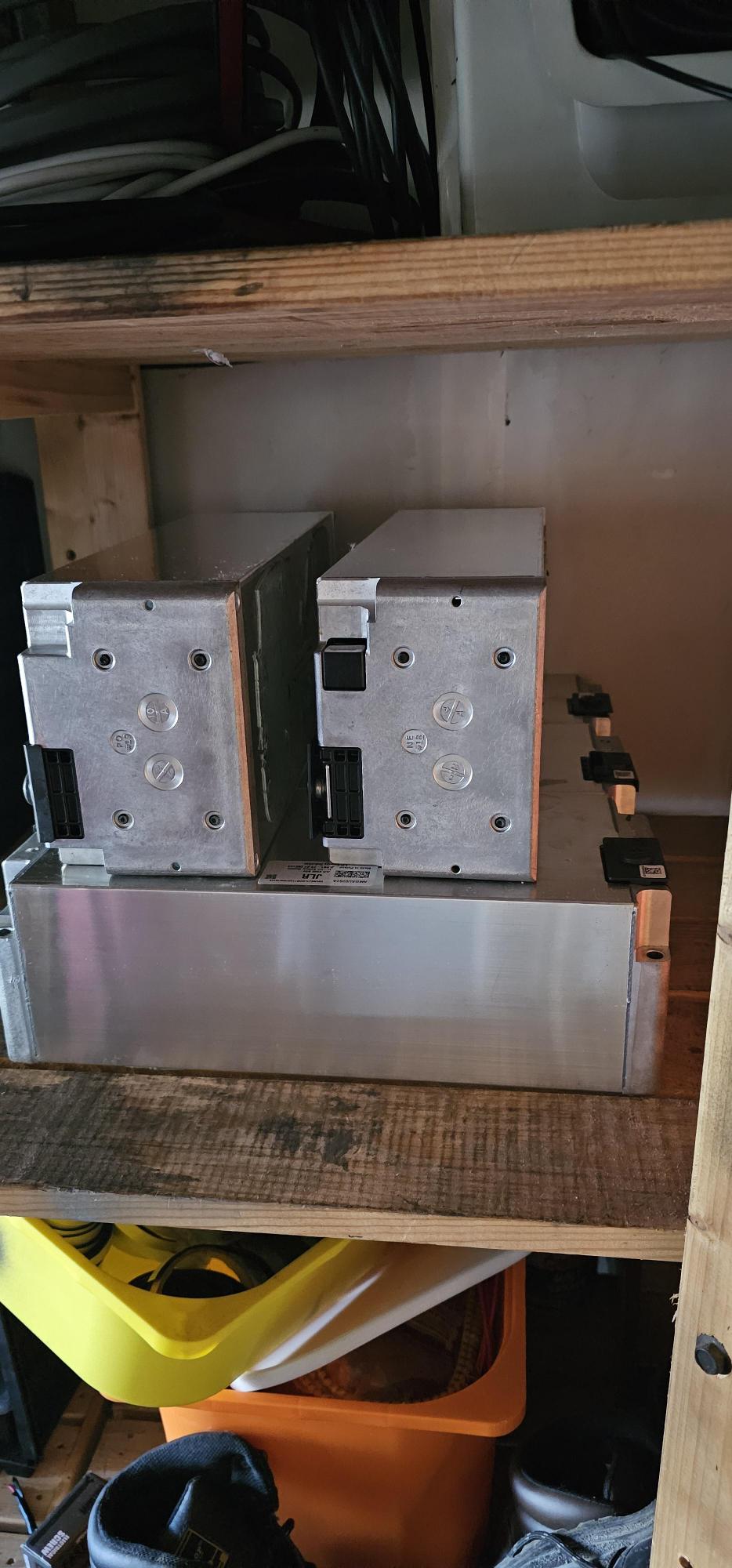

....and some i-Pace modules from an ultra low mileage car.



That's as far as it goes so far! I have some plans to take the basis of Jacks ideas, but apply some analysis to the structure to address some concerns I have about the mounting.

I'll be modelling everything in Fusion & hopefully carrying out some FEA on the side frames & module mounts.
Anhänge:
Folgende Benutzer bedankten sich: lip

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • coredump
  • coredumps Avatar
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 2
  • Dank erhalten: 0
12 Nov 2026 19:25 #286914 von coredump
My Take on the 13kWh Battery Using i-Pace Modules
Nice, i'm running an i-Pace battery too ( however a bought one ), it has a orion BMS coredump.ws/repos/twizy-canbus.git/ , made my own version of the BMS=>twizy translator, also figured out how the third party sevcon to twizy sevcon translation works, and made a nice display/overheating limiting.

If you need help translating BMS canbus to twizy canbus let me know, i can let my claude do that for pretty much any BMS :P

If you run a bigger battery you are going to want to run an air scoop at the bottom to scoop air over the motor so it heats less quickly, the display i made here has power limiting to reduce overheating for a reason ;)

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • CallMeLegend
  • CallMeLegends Avatar
  • Autor
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 36
  • Dank erhalten: 25
13 Nov 2026 09:15 - 13 Nov 2026 09:15 #286930 von CallMeLegend
My Take on the 13kWh Battery Using i-Pace Modules
Ah Claude, I have been a denier of AI for years. This week I gave in started using Claude at work. I've been designing a wiper mechanism for an electric hypercar than we are patenting. It's quite a complicated mechanism due to our windscreen geometry, so I used Claude to validate my design.......I'm stunned. It not only checked my design for clashes #9confirming my finding that there are not any), but it also generated current graphs for the motor at different speeds, even calculated the load on wiper at different vehicle speeds.

Bottom line is, it's saved me about 3days works, so I can get on & do other cool stuff!

Motor cooling is amongst things for me to investigate......perhaps I'll use Claude!
Letzte Änderung: 13 Nov 2026 09:15 von CallMeLegend.
